Paper Tapered Plugs

 800.633.6775


Paper Tapered Plugs

MPTP


Inexpensive Paper Stoppers
Paper Tapered Plugs

MPTP–Media

Paper Tapered Plugs Paper Tapered Masking Plug Tapered Paper Masking Products Environmentally friendly tapered paper plugs Paper Tapered Plugs Inexpensive Paper Stoppers High-Temperature Paper Tapered End Plug Tapered Paper Plug Cap Tapered Paper Plug Paper Tapered Plugs
  • Material: Paper (Brown)
  • Environmentally Friendly and Economical Masking Solution
  • Does Not Promote Condensation

Size Chart Tapered Paper Masking Products

MPTP Size Chart

Table View
List View
Part # Description To Fit FEMALE NPT To Fit STD Thread To Fit METRIC Thread To Fit BSP Small O.D.
in
mm
Large O.D.
in
mm
Length
in
mm
Flange OD
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
MPTP002 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN 1/8 7/16 M10 M11
0.354
9.0
0.413
10.5
0.343
8.7
0.563
14.3
30000 1000 100
MPTP004 Tapered Paper Plug - TAPERED PLUG, PAPER -TAN 1/2 M11 M12 G1/4
0.370
9.4
0.469
11.9
0.358
9.1
0.630
16.0
22000 1000 100
MPTP006 Tapered Paper Plug Cap - TAPERED PLUG, PAPER -TAN 1/4 9/16 M14 G1/4
0.461
11.7
0.504
12.8
0.362
9.2
0.685
17.4
18000 1000 100
MPTP008 High-Temperature Paper Tapered End Plug - TAPERED PLUG, PAPER -TAN 5/8 M14 M15
0.469
11.9
0.575
14.6
0.417
10.6
0.760
19.3
13500 1000 100
MPTP009 Inexpensive Paper Stoppers - TAPERED PLUG, PAPER -TAN 3/8 11/16 M16 M17 G3/8
0.520
13.2
0.634
16.1
0.421
10.7
0.870
22.1
9000 1000 100
MPTP011 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN 3/8 M16 M17 M18 G3/8
0.579
14.7
0.697
17.7
0.480
12.2
0.866
22.0
16000 1000 100
MPTP012 Environmentally friendly tapered paper plugs - TAPERED PLUG, PAPER -TAN 3/4, 13/16 M18 M20 G1/2
0.650
16.5
0.776
19.7
0.453
11.5
1.004
25.5
13000 1000 100
MPTP014 Tapered Paper Masking Products - TAPERED PLUG, PAPER -TAN 1/2 M20 M22 G1/2
0.677
17.2
0.819
20.8
0.532
13.5
1.035
26.3
10500 1000 100
MPTP016 Paper Tapered Masking Plug - TAPERED PLUG, PAPER -TAN 7/8, 15/16 M22 M24 G5/8
0.780
19.8
0.878
22.3
0.583
14.8
1.181
30.0
7200 1000 100
MPTP017 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN 3/4 15/16, 1 M24 M25 M26 M27 G3/4
0.858
21.8
0.949
24.1
0.689
17.5
1.295
32.9
5000 1000 100
MPTP019 Tapered Paper Plug - TAPERED PLUG, PAPER -TAN 3/4 1, 1-1/16 M25 M26 M27 M28 M30 G3/4
0.917
23.3
1.114
28.3
0.543
13.8
1.378
35.0
6200 1000 100
MPTP020 Tapered Paper Plug Cap - TAPERED PLUG, PAPER -TAN 1 1-1/8, 1-3/16, 1-1/4 M27 M28 M30 M33 G7/8, G1
1.000
25.4
1.236
31.4
0.760
19.3
1.528
38.8
3500 1000 100
MPTP022 High-Temperature Paper Tapered End Plug - TAPERED PLUG, PAPER -TAN 1 1-5/16, 1-3/8, 1-7/16, 1-1/2 M33 M35 M36 G1
1.173
29.8
1.437
36.5
0.634
16.1
1.732
44.0
5000 1000 100
MPTP023 Inexpensive Paper Stoppers - TAPERED PLUG, PAPER -TAN 1-1/2, 1-9/16, 1-5/8 M36 M38 M39 M40 M42 G1-1/4
1.362
34.6
1.602
40.7
0.575
14.6
1.882
47.8
4700 940 94
MPTP027 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN 1-1/4 1-11/16, 1-3/4, 1-13/16, 1-7/8 M42 M45 M48 G1-1/4, G1-1/2
1.496
38.0
1.776
45.1
0.689
17.5
2.118
53.8
3000 600 60
MPTP029 Environmentally friendly tapered paper plugs - TAPERED PLUG, PAPER -TAN 1-1/2 1-13/16, 1-7/8, 1-15/16, 2 M48 M50 G1-1/2, G1-3/4
1.724
43.8
2.063
52.4
0.677
17.2
2.429
61.7
2700 540 54
MPTP030 Tapered Paper Masking Products - TAPERED PLUG, PAPER -TAN 2-1/8, 2-1/4 M52 M55 M56 G1-3/4
1.874
47.6
2.209
56.1
0.701
17.8
2.701
68.6
2200 440 44
MPTP031 Paper Tapered Masking Plug - TAPERED PLUG, PAPER -TAN 2-1/4, 2-3/8 M56 M58 M60 G1-3/4 G2
1.976
50.2
2.299
58.4
1.028
26.1
2.921
74.2
1200 240 24
MPTP032 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN 2 2-3/8, 2-1/2 M60 M62 M63 M64 M65 G2
2.217
56.3
2.500
63.5
0.642
16.3
2.933
74.5
1800 360 36
MPTP033 Tapered Paper Plug - TAPERED PLUG, PAPER -TAN 2-1/2 2-7/8, 3 M72 M75 M76 M78 M80
2.638
67.0
3.146
79.9
0.752
19.1
3.571
90.7
1300 260 26
MPTP034 Tapered Paper Plug Cap - TAPERED PLUG, PAPER -TAN 3 3-1/2 M90
3.276
83.2
3.598
91.4
0.736
18.7
4.091
103.9
1000 200 20
Part # Description To Fit FEMALE NPT To Fit STD Thread To Fit METRIC Thread To Fit BSP Small O.D.
in
mm
Large O.D.
in
mm
Length
in
mm
Flange OD
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.

NOTE:
  • Part dimensions are typical from a measured lot. Individual pieces may vary.
  • Due to the material, this product may have minor dimensional variation due to changes in relative humidity.
  • Flange concentricity may vary.
  • Due to paper's natural structure, the product may be oblong in free state. This will generally aid in the product's retention capability.




Paper Tapered Plugs - Information

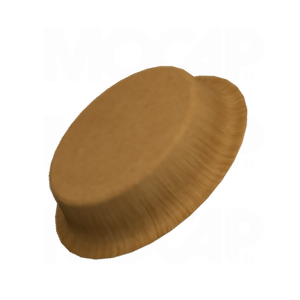

MOCAP Paper Tapered Plugs are an environmentally friendly and economical masking solution. Made of recyclable paper, these tapered paper plugs do not promote condensation. These closures will withstand up to 400°F(204°C), making them ideal for low-to-high temperature applications.
Note: Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.
Our MPTP Series Plugs are manufactured in Tan paper and sized to fit 1/8 thru 3 inch Female NPT's.

MOCAP stocks Paper Tapered Plugs in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
