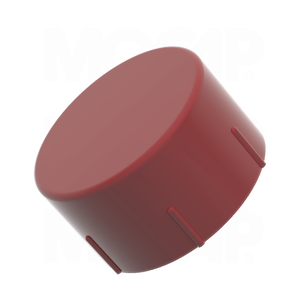

Threaded Caps for Metric Threads
CMT Series
MOCAP Threaded Plastic Caps are designed for use on Metric threads and fittings. These Threaded Plastic Caps are knurled for easy application and handling.
Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating. Our CMT Series Threaded Caps are molded in Red polyethylene plastic and sized to cap Metric threads from M8 thru M52.
MOCAP stocks Threaded Caps For Metric threads and fittings in many sizes for immediate shipment.
All sizes are available in Mini-Pak quantities when less than case quantities are what you really need. To place an order for this product, click the "buy" button below. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
Threaded Caps for Metric Threads application images
| Part # |
To Fit METRIC Thread |
(A)
Inside Diameter |
(B)
Length |
(C)
Wall Thickness |
Rib Count |
Box
QTY |
Mini
Pack |
Buy NOW |
| in | mm | in | mm | in | mm |
| CMT0810RD1 |
M8x1 |
0.317 | 8.05 |
0.394 | 10.01 |
0.030 | 0.76 |
4 |
5,000 |
1,000 |
 |
| CMT1010RD1 |
M10x1 |
0.395 | 10.03 |
0.394 | 10.01 |
0.030 | 0.76 |
4 |
5,000 |
1,000 |
|
| CMT1210RD1 |
M12x1 |
0.474 | 12.04 |
0.472 | 11.99 |
0.030 | 0.76 |
6 |
5,000 |
1,000 |
|
| CMT1215RD1 |
M12x1.5 |
0.474 | 12.04 |
0.472 | 11.99 |
0.030 | 0.76 |
6 |
5,000 |
1,000 |
|
| CMT1415RD1 |
M14x1.5 |
0.553 | 14.05 |
0.472 | 11.99 |
0.030 | 0.76 |
6 |
5,000 |
1,000 |
|
| CMT1415LRD1 |
M14x1.5 |
0.553 | 14.05 |
0.827 | 21.01 |
0.030 | 0.76 |
6 |
5,000 |
1,000 |
|
| CMT1615RD1 |
M16x1.5 |
0.631 | 16.03 |
0.472 | 11.99 |
0.030 | 0.76 |
6 |
5,000 |
1,000 |
|
| CMT1615LRD1 |
M16x1.5 |
0.631 | 16.03 |
0.827 | 21.01 |
0.030 | 0.76 |
6 |
5,000 |
1,000 |
|
| CMT1815RD1 |
M18x1.5 |
0.710 | 18.03 |
0.551 | 14.00 |
0.035 | 0.89 |
6 |
4,000 |
800 |
|
| CMT2015RD1 |
M20x1.5 |
0.789 | 20.04 |
0.551 | 14.00 |
0.035 | 0.89 |
6 |
4,000 |
800 |
|
| CMT2215RD1 |
M22x1.5 |
0.868 | 22.05 |
0.543 | 13.79 |
0.035 | 0.89 |
6 |
3,000 |
600 |
|
| CMT2215LRD1 |
M22x1.5 |
0.868 | 22.05 |
0.965 | 24.51 |
0.035 | 0.89 |
6 |
2,500 |
500 |
|
| CMT2415RD1 |
M24x1.5 |
0.946 | 24.03 |
0.551 | 14.00 |
0.035 | 0.89 |
6 |
3,000 |
600 |
|
| CMT2515RD1 |
M25x1.5 |
0.986 | 25.04 |
0.551 | 14.00 |
0.035 | 0.89 |
6 |
2,000 |
400 |
|
| CMT2615RD1 |
M26x1.5 |
1.024 | 26.01 |
0.551 | 14.00 |
0.035 | 0.89 |
6 |
2,000 |
400 |
|
| CMT2815RD1 |
M28x1.5 |
1.104 | 28.04 |
0.488 | 12.40 |
0.035 | 0.89 |
6 |
2,000 |
400 |
|
| CMT3020RD1 |
M30x2 |
1.180 | 29.97 |
0.492 | 12.50 |
0.035 | 0.89 |
8 |
1,500 |
300 |
|
| CMT3620RD1 |
M36x2 |
1.416 | 35.97 |
0.630 | 16.00 |
0.040 | 1.02 |
8 |
1,500 |
300 |
|
| CMT4220RD1 |
M42x2 |
1.652 | 41.96 |
0.630 | 16.00 |
0.040 | 1.02 |
8 |
500 |
100 |
|
| CMT5220RD1 |
M52x2 |
2.047 | 51.99 |
0.630 | 16.00 |
0.040 | 1.02 |
8 |
500 |
100 |
|
