Sealing Plugs for Metric Threads

SPM

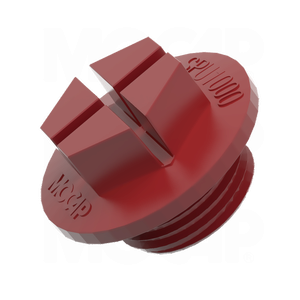

Metric Sealing Plugs with Slotted Hex Head
Sealing Plugs for Metric Threads

SPM – Media

Sealing Plugs for Metric Threads Plastic Sealing Bolt - Metric Threads Metric Sealing Plug Caps (Polypropylene or Nylon) Plastic Sealing Plugs for Metric Threads Metric Sealing Plugs with Slotted Hex Head Metric Sealing Plug Plastic Metric Sealing Plugs Metric Sealing Plug
  • Material: Polypropylene (RED), Nylon (Yellow)
  • Designed with Five Complete Threads Plus an Integrated Sealing Lip for a Tight Fit
  • Also Available with a Factory Fit Neoprene O-Ring when a Secure Seal is Required

Size Chart Metric Sealing Plug

PrintPrint

SPM Size Chart

Default Part # O-Ring To Fit METRIC Thread Suggested Applications Flange OD
in
mm
Stem Height
in
mm
Color Box/Mini/Micro
QTY
Buy Online
More info
1 SPM1010RD4 M10 x 1.0 RED
0.560
14.2
0.390
9.9
RED 5000 1000 100
2 SPM1010RD4NO M10 x 1.0 RED
0.560
14.2
0.390
9.9
RED 5000 1000 100
3 SPM1215RD4 M12 x 1.5 RED
0.680
17.3
0.390
9.9
RED 5000 1000 100
4 SPM1215RD4NO M12 x 1.5 RED
0.680
17.3
0.390
9.9
RED 5000 1000 100
5 SPM1415RD4 M14 x 1.5 RED
0.760
19.3
0.390
9.9
RED 5000 1000 100
6 SPM1415RD4NO M14 x 1.5 RED
0.760
19.3
0.390
9.9
RED 5000 1000 100
7 SPM1615RD4 M16 x 1.5 RED
0.870
22.1
0.390
9.9
RED 5000 1000 100
8 SPM1615RD4NO M16 x 1.5 RED
0.870
22.1
0.390
9.9
RED 5000 1000 100
9 SPM1815RD4 M18 x 1.5 RED
0.940
23.9
0.430
10.9
RED 3000 600 60
10 SPM1815RD4NO M18 x 1.5 RED
0.940
23.9
0.430
10.9
RED 3000 600 60
11 SPM2015RD4 M20 x 1.5 RED
1.020
25.9
0.550
14.0
RED 3000 600 60
12 SPM2015RD4NO M20 x 1.5 RED
1.020
25.9
0.550
14.0
RED 3000 600 60
13 SPM2215RD4 M22 x 1.5 RED
1.070
27.2
0.550
14.0
RED 3000 600 60
14 SPM2215RD4NO M22 x 1.5 RED
1.070
27.2
0.550
14.0
RED 3000 600 60
15 SPM2415RD4 M24 x 1.5 RED
1.240
31.5
0.550
14.0
RED 500 100 10
16 SPM2415RD4NO M24 x 1.5 RED
1.240
31.5
0.550
14.0
RED 500 100 10
17 SPM2615RD4 M26 x 1.5 RED
1.260
32.0
0.550
14.0
RED 500 100 10
18 SPM2615RD4NO M26 x 1.5 RED
1.260
32.0
0.550
14.0
RED 500 100 10
19 SPM2720RD4 M27 x 2.0 RED
1.270
32.3
0.550
14.0
RED 500 100 10
20 SPM2720RD4NO M27 x 2.0 RED
1.270
32.3
0.550
14.0
RED 500 100 10
21 SPM3320RD4 M33 x 2.0 RED
1.590
40.4
0.550
14.0
RED 250 50 5
22 SPM3320RD4NO M33 x 2.0 RED
1.590
40.4
0.550
14.0
RED 250 50 5
23 SPM1010YW5 M10 x 1.0 YELLOW
0.560
14.2
0.390
9.9
YELLOW 5000 1000 100
24 SPM1010YW5NO M10 x 1.0 YELLOW
0.560
14.2
0.390
9.9
YELLOW 5000 1000 100
25 SPM1215YW5 M12 x 1.5 YELLOW
0.680
17.3
0.390
9.9
YELLOW 5000 1000 100
26 SPM1215YW5NO M12 x 1.5 YELLOW
0.680
17.3
0.390
9.9
YELLOW 5000 1000 100
27 SPM1415YW5 M14 x 1.5 YELLOW
0.760
19.3
0.390
9.9
YELLOW 5000 1000 100
28 SPM1415YW5NO M14 x 1.5 YELLOW
0.760
19.3
0.390
9.9
YELLOW 5000 1000 100
29 SPM1615YW5 M16 x 1.5 YELLOW
0.870
22.1
0.390
9.9
YELLOW 5000 1000 100
30 SPM1615YW5NO M16 x 1.5 YELLOW
0.870
22.1
0.390
9.9
YELLOW 5000 1000 100
31 SPM1815YW5 M18 x 1.5 YELLOW
0.940
23.9
0.430
10.9
YELLOW 3000 600 60
32 SPM1815YW5NO M18 x 1.5 YELLOW
0.940
23.9
0.430
10.9
YELLOW 3000 600 60
33 SPM2015YW5 M20 x 1.5 YELLOW
1.020
25.9
0.550
14.0
YELLOW 3000 600 60
34 SPM2015YW5NO M20 x 1.5 YELLOW
1.020
25.9
0.550
14.0
YELLOW 3000 600 60
35 SPM2215YW5 M22 x 1.5 YELLOW
1.070
27.2
0.550
14.0
YELLOW 3000 600 60
36 SPM2215YW5NO M22 x 1.5 YELLOW
1.070
27.2
0.550
14.0
YELLOW 3000 600 60
37 SPM2415YW5 M24 x 1.5 YELLOW
1.240
31.5
0.550
14.0
YELLOW 500 100 10
38 SPM2415YW5NO M24 x 1.5 YELLOW
1.240
31.5
0.550
14.0
YELLOW 500 100 10
39 SPM2615YW5 M26 x 1.5 YELLOW
1.260
32.0
0.550
14.0
YELLOW 500 100 10
40 SPM2615YW5NO M26 x 1.5 YELLOW
1.260
32.0
0.550
14.0
YELLOW 500 100 10
41 SPM2720YW5 M27 x 2.0 YELLOW
1.270
32.3
0.550
14.0
YELLOW 500 100 10
42 SPM2720YW5NO M27 x 2.0 YELLOW
1.270
32.3
0.550
14.0
YELLOW 500 100 10
43 SPM3320YW5 M33 x 2.0 YELLOW
1.590
40.4
0.550
14.0
YELLOW 250 50 5
44 SPM3320YW5NO M33 x 2.0 YELLOW
1.590
40.4
0.550
14.0
YELLOW 250 50 5
Default Part # O-Ring To Fit METRIC Thread Suggested Applications Flange OD
in
mm
Stem Height
in
mm
Color Box/Mini/Micro
QTY
Buy Online
More info
Legend:
- Add to Cart - View Price - Request Samples / More Info

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.



Sealing Plugs for Metric Threads - Information

MOCAP Sealing Plugs for Metric Threads are designed to protect Metric Fittings from moisture, dust and damage during production, shipping and storage. Five complete threads plus a sealing lip provide a tight fit and secure seal. Can be applied and removed by hand, with a socket wrench, screwdriver or power tool.
Our SPM Series Plugs are:

  • Molded in Red Polypropylene(Standard applications)or
  • Yellow Nylon (offers high resistance against hydraulic fluids, solvents, acids and base alkalines)
  • Sized to fit Metric Threads from M10 thru M33.

These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.

MOCAP stocks Sealing Plugs for Metric Threads in both Red Polypropylene and Yellow Nylon materials in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
