Universal Thread Plugs

U


Polyethylene Plugs for Universal Threads
Universal Thread Plugs

U–Media

Universal Thread Plugs Universal Thread Plug Plastic Push Plug Universal Thread Plugs Plastic Protective Push-in Plug Polyethylene Plugs for Universal Threads Plastic Bolt for Universal Threads (Polyethylene) Plastic Plug Caps for Universal Threads Plastic Plugs for Universal Threads Universal Thread Plugs
  • Material: LDPE (Low Density Polyethylene) (Red)
  • Designed for Maximum Flexibility to Fit Many Different Thread Types and Sizes with a Simple Push-In and Turn to Lock-In-Place

Size Chart Plastic Push Plug

U Size Chart

Table View
List View
Part # Description To Fit BSP To Fit NPT To Fit UNF To Fit UN To Fit METRIC Thread Length
in
mm
Bevel Length
in
mm
Stem Diameter
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
U100RD1 Universal Thread Plugs - UNIVERSAL THREAD PLUG, LDPE RED 1/8" 1/8" 7/16" M10
0.530
13.5
0.260
6.6
0.434
11.0
5000 1000 100
U105RD1 Plastic Plugs for Universal Threads - UNIVERSAL THREAD PLUG, LDPE RED 1/4" 1/2" M11, M12
0.560
14.2
0.280
7.1
0.504
12.8
5000 1000 100
U110RD1 Plastic Plug Caps for Universal Threads - UNIVERSAL THREAD PLUG, LDPE RED 1/4" 1/4" 9/16" M14
0.590
15.0
0.310
7.9
0.568
14.4
5000 1000 100
U115RD1 Plastic Bolt for Universal Threads (Polyethylene) - UNIVERSAL THREAD PLUG, LDPE RED 3/8" 3/4" M16, M18, M20
0.670
17.0
0.390
9.9
0.774
19.7
5000 1000 100
U120RD1 Polyethylene Plugs for Universal Threads - UNIVERSAL THREAD PLUG, LDPE RED 1/2", 5/8" 1" M22, M24, M25
0.740
18.8
0.460
11.7
0.976
24.8
3000 600 60
U125RD1 Plastic Protective Push-in Plug - UNIVERSAL THREAD PLUG, LDPE RED 3/4", 7/8" 3/4" 1-3/16" M30
0.910
23.1
0.560
14.2
1.216
30.9
2500 500 50
U130RD1 Universal Thread Plugs - UNIVERSAL THREAD PLUG, LDPE RED 7/8", 1" 1-7/16" M36
0.980
24.9
0.560
14.2
1.480
37.6
2500 500 50
Part # Description To Fit BSP To Fit NPT To Fit UNF To Fit UN To Fit METRIC Thread Length
in
mm
Bevel Length
in
mm
Stem Diameter
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.



Universal Thread Plugs - Information

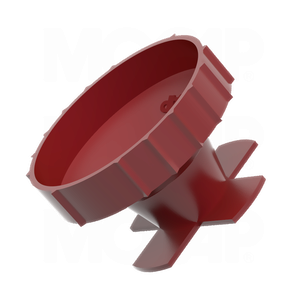

MOCAP Universal Thread Plugs are designed to fit many different thread types and sizes, allowing for maximum flexibility. These Plastic Plugs are easy to install. Simply push the plug into the female threaded port and apply a small turn to lock it in place.
Protects threaded components and fittings from moisture, dust and damage during production, shipping and storage.

Our U Series Plugs are molded in Red polyethylene plastic and sized to fit 1/8 thru 3/4 NPT or 7/16 thru 1-7/16 UN or 1/8 thru 1 BSP or M10 thru M36 Threads.

MOCAP stocks Universal Thread Plugs in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.











RoHS


Diagram
